Home > Press > Imec Demonstrates Electronics that Flex and Stretch like Skin

Abstract:
Imec announced today that it has integrated an ultra-thin, flexible chip with bendable and stretchable interconnects into a package that adapts dynamically to curving and bending surfaces. The resulting circuitry can be embedded in medical and lifestyle applications where user comfort and unobtrusiveness is key, such as wearable health monitors or smart clothing. At the 2012 ESTC conference (Electronics System Integration Technology Conference) in Amsterdam (September 17-20, 2012), the researchers will present their results and showcase their latest demonstrations.

Imec Demonstrates Electronics that Flex and Stretch like Skin

Leuven, Belgium | Posted on September 18th, 2012

Today most electronic appliances are rigid, or at most, mechanically flexible. A growing number of applications, however, require electronics that dynamically adapt to curving and bending surfaces. Some examples include biomedical systems such as unobtrusive, wearable health monitors (e.g. electrocardiogram or temperature sensors), advanced surgical tools, or consumer electronics such as mobile phones embedded in smart textiles. Imec's associated lab at the University of Ghent has pioneered this technology, moving it toward industrial applicability. Industrial partners that want to build a critical lead in this field are welcomed to join the R&D program.

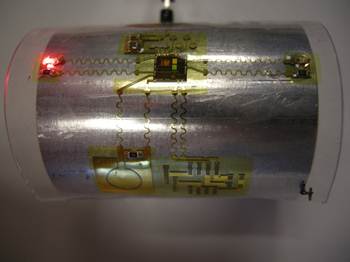

For the demonstration, the researchers thinned a commercially available microcontroller down to 30m, preserving the electrical performance and functionality. This die was then embedded in a slim polyimide package (40-50m thick). Next, this ultrathin chip was integrated with stretchable electrical wiring. These were realized by patterning polyimide-supported meandering horseshoe-shaped wires, a technology developed and optimized at the lab. Last, the package is embedded in an elastomeric substrate, e.g. polydimethylsiloxane (PDMS). In this substrate, the conductors behave as two dimensional springs, enabling greater flexibility while preserving conductivity.

"Future electronic circuitry will stretch and bend like rubber or skin while preserving its conductivity," comments Jan Vanfleteren, responsible for the research on flexible and stretchable electronics at imec's Ghent lab. "This breakthrough achievement demonstrates that flexible Ultra-Thin Chip Packages (UTCP) can be integrated with stretchable wiring, paving the way toward fully flexible applications. We anticipate the first appliances will be used in intelligent clothing, with medical applications following later. Once commercial products are introduced, I expect to see clothing with signalization by using LEDs and sensors to track movements."

This research is supported by the Agency for Innovation by Science and Technology in Flanders (IWT) through the SBO-BrainSTAR project.

####

About IMEC
Imec performs world-leading research in nanoelectronics. Imec leverages its scientific knowledge with the innovative power of its global partnerships in ICT, healthcare and energy. Imec delivers industry-relevant technology solutions. In a unique high-tech environment, its international top talent is committed to providing the building blocks for a better life in a sustainable society. Imec is headquartered in Leuven, Belgium, and has offices in Belgium, the Netherlands, Taiwan, US, China, India and Japan. Its staff of close to 2,000 people includes more than 600 industrial residents and guest researchers. In 2011, imec's revenue (P&L) was about 300 million euro. Further information on imec can be found at www.imec.be.

Imec is a registered trademark for the activities of IMEC International (a legal entity set up under Belgian law as a "stichting van openbaar nut), imec Belgium (IMEC vzw supported by the Flemish Government), imec the Netherlands (Stichting IMEC Nederland, part of Holst Centre which is supported by the Dutch Government), imec Taiwan (IMEC Taiwan Co.) and imec China (IMEC Microelectronics (Shanghai) Co. Ltd.) and imec India (Imec India Private Limited).

For more information, please click here

Contacts:
Olga Walsh | Business Technology
[ f o r m u l a ]
Formula PR, Inc.
1215 Cushman Avenue
San Diego, CA 92110
Office 619-234-0345
