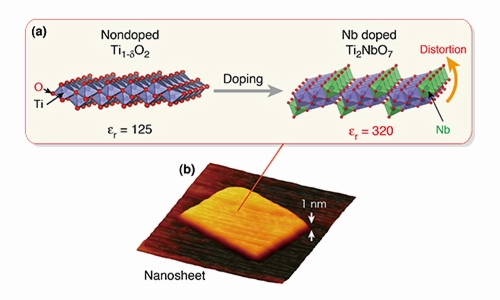

Figure: Tailor-made dielectric nanosheet via controlled nanoscale doping. (a) Structural change induced by Nb doping. (b) AFM image of titanium-niobate nanosheet.
Figure: Tailor-made dielectric nanosheet via controlled nanoscale doping. (a) Structural change induced by Nb doping. (b) AFM image of titanium-niobate nanosheet.

Abstract:
MANA researchers have developed the world's highest performance thin-film capacitors using a new high-permittivity (high-k) dielectric sheet with molecular-level thickness (~1 nm). This technology may revolutionize the next-generation electronics.

High-performance thin film boost for electronics research

Japan | Posted on January 4th, 2012

[Tsukuba, 4 January 2012] The announcement of this breakthrough comes from a research group led by MANA Scientist Dr. Minoru Osada and Principal Investigator Dr. Takayoshi Sasaki of the International Center for Materials Nanoarchitectonics (MANA) at the National Institute for Material Science (NIMS) in Japan.

Good insulating, high-k nanofilms are expected to be key to future applications as predicted by the International Technology Roadmap for Semiconductors (ITRS).

Minoru Osada and colleagues created thin films based on titanium-niobate nanosheets (TiNbO5, Ti2NbO7, Ti5NbO14) as building blocks. The research group delaminated layered oxides and stacked sheets on an atomically flat SrRuO3 substrate, creating films between 5 and 15 nm thick. The thin-film capacitors developed by this method have excellent dielectric characteristics, achieving the world's highest performance permittivity (160 ~ 300) with a film thickness of 5 ~ 15 nm.

The researchers relate the dielectric performance of the nanofilms to the structural features. In these nanosheets, the octahedral distortion inherent to site engineering by Nb doping results in a giant molecular polarizability. New cooperative functions that originate from the mutual interactions between nanoscale structural units comprise the focus of nanoarchitectonics, the discipline at the center of MANA research.

This latest research demonstrates simultaneous improvements in a number of material properties, including relative permittivity, lower loss and leakage current. The authors add, "The solution-based room-temperature process using oxide nanosheets as building blocks opens multiple possibilities for the development of high-k dielectrics in capacitor technology, gate insulators in organic field effect transistors, energy-storage devices, and also future flexible electronics."

Further information about publications and affiliation

Minoru Osada1*, Genki Takanashi1, Bao-Wen Li1, Kosho Akatsuka1, Yasuo Ebina1, Kanta Ono2, Hiroshi Funakubo3, Kazunori Takada1 and Takayoshi Sasaki1, "Controlled Polarizability of One-Nanometer-Thick Oxide Nanosheets for Tailored, High-k Nanodielectrics", Advanced Functional Materials, 21, 3482-3487, (2011).
