Home > Press > Graphene walls could make powerful electronics: Rice, Hong Kong Polytechnic physicists calculate 100 trillion could fit on a chip

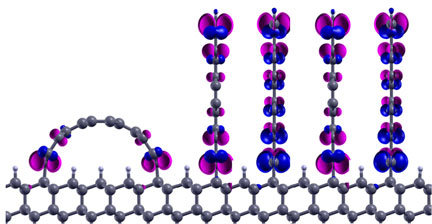

Researchers at Rice University and Hong Kong Polytechnic University calculated that graphene nanoribbons could stand up on diamond or nickel, or even form arches. Up to 100 trillion graphene walls could fit on a square centimeter chip. (Credit: Feng Ding/Hong Kong Polytechnic University)
Researchers at Rice University and Hong Kong Polytechnic University calculated that graphene nanoribbons could stand up on diamond or nickel, or even form arches. Up to 100 trillion graphene walls could fit on a square centimeter chip.

(Credit: Feng Ding/Hong Kong Polytechnic University)

Abstract:
To stand a ribbon of graphene upright, it needs diamond on the soles of its shoes.

A new paper by collaborators at Rice University and Hong Kong Polytechnic University demonstrates the possibility that tiny strips of graphene -- one-atom-thick sheets of carbon -- can stand tall on a substrate with a little support. This leads to the possibility that arrays of graphene walls could become ultrahigh density components of electronic or spintronic devices.

Graphene walls could make powerful electronics: Rice, Hong Kong Polytechnic physicists calculate 100 trillion could fit on a chip

Houston, TX | Posted on September 28th, 2011

The work was published this month in the online edition of the Journal of the American Chemical Society.

Calculations by Rice theoretical physicist Boris Yakobson, Assistant Professor Feng Ding of Hong Kong Polytechnic and their collaborators showed substrates not only of diamond but also nickel could chemically bind the edge of a strip of a graphene nanoribbon. Because the contact is so slight, the graphene walls retain nearly all of their inherent electrical or magnetic properties.

And because they're so thin, Yakobson and Ding calculated a theoretical potential of putting 100 trillion graphene wall field-effect transistors (FETs) on a square-centimeter chip.

That potential alone may make it possible to blow past the limits implied by Moore's Law -- something Yakobson once discussed with Intel founder Gordon Moore himself.

"We met in Montreal, when nano was a new kid on the block, and had a good conversation," said Yakobson, Rice's Karl F. Hasselmann Chair in Engineering and a professor of materials science and mechanical engineering and of chemistry. "Moore liked to talk about silicon wafers in terms of real estate. Following his metaphor, an upright architecture would increase the density of circuits on a chip -- like going from ranch-style houses in Texas to skyscraper condos in Hong Kong.

"This kind of strategy may help sustain Moore's Law for an extra decade," he said.

A sheet of material a fraction of a nanometer wide is pretty pliable, he said, but the laws of physics are on its side. Binding energies between carbon in the diamond matrix and carbon in graphene are maximized at the edge, and the molecules bind strongly at a 90-degree angle. Minimal energy is required for the graphene to stand upright, which is its preferred state. (Walls on a nickel substrate would be angled at about 30 degrees, the researchers found.)

Yakobson said the walls could be as close to each other as 7/10ths of a nanometer, which would maintain the independent electronic properties of individual nanoribbons. They could potentially be grown on silicon, silicon dioxide, aluminum oxide or silicon carbide.

The research illustrated differences between walls made of two distinct types of graphene, zigzag and armchair, so-called because of the way their edges are shaped.

Sheets of graphene are considered semimetals that have limited use in electronics because electrical current shoots straight through without resistance. However, armchair nanoribbons can become semiconductors; the thinner the ribbon, the larger the band gap, which is essential for transistors.

Zigzag nanoribbons are magnetic. Electrons at their opposing edges spin in opposite directions, a characteristic that can be controlled by an electric current; this makes them suitable for spintronic devices.

In both cases, the electronic properties of the walls can be tuned by changing their height.

The researchers also suggested nanowalls could become nanoarches by attaching opposing ends of a graphene ribbon to the substrate. Rather than lie flat on the diamond or nickel surface, the energies at play along the binding edges would naturally force the graphene strip to rise in the middle. It would essentially become a half-nanotube with its own set of potentially useful properties.

Precisely how to turn these two-dimensional building blocks into a three-dimensional device presents challenges, but the payoff is great, Yakobson said. He noted that the research lays the groundwork for subnanometer electronic technology.

Co-authors of the paper are Qinghong Yuan, Hong Hu and Junfeng Gao of the Institute of Textiles and Clothing, Hong Kong Polytechnic University, and Zhifeng Liu of the Chinese University of Hong Kong. Ding was a research scientist in Yakobson's Rice lab from 2005 to 2009 and has a complimentary appointment at Rice.

####

About Rice University
Located on a 285-acre forested campus in Houston, Texas, Rice University is consistently ranked among the nation's top 20 universities by U.S. News & World Report. Rice has highly respected schools of Architecture, Business, Continuing Studies, Engineering, Humanities, Music, Natural Sciences and Social Sciences and is known for its žunconventional wisdom." With 3,485 undergraduates and 2,275 graduate students, Rice's undergraduate student-to-faculty ratio is less than 6-to-1. Its residential college system builds close-knit communities and lifelong friendships, just one reason why Rice has been ranked No. 1 for best quality of life multiple times by the Princeton Review and No. 4 for "best value" among private universities by Kiplinger's Personal Finance. To read "What they're saying about Rice," go to www.rice.edu/nationalmedia/Rice.pdf.

For more information, please click here

Contacts:
David Ruth
713-348-6327


Mike Williams
713-348-6728
