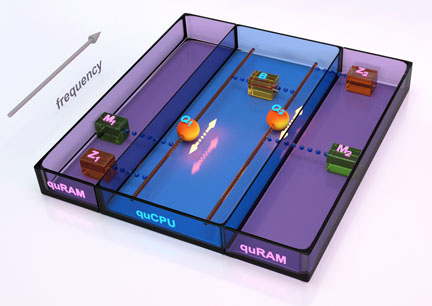

The quantum von Neumann machine: Two qubits are coupled to a quantum bus, realizing a quCPU. Each qubit is accompanied by a quantum memory as well as a zeroing register. The quantum memories together with the zeroing register realize the quRAM.
Credit: Peter Allen, UCSB
The quantum von Neumann machine: Two qubits are coupled to a quantum bus, realizing a quCPU. Each qubit is accompanied by a quantum memory as well as a zeroing register. The quantum memories together with the zeroing register realize the quRAM.

Credit: Peter Allen, UCSB

Abstract:
A new paradigm in quantum information processing has been demonstrated by physicists at UC Santa Barbara. Their results are published in this week's issue of Science Express online.

UCSB Physicists Demonstrate the Quantum von Neumann Architecture, a Quantum Processor, and a Quantum Memory on a Chip

Santa Barbara, CA | Posted on September 1st, 2011

UCSB physicists have demonstrated a quantum integrated circuit that implements the quantum von Neumann architecture. In this architecture, a long-lived quantum random access memory can be programmed using a quantum central processing unit, all constructed on a single chip, providing the key components for a quantum version of a classical computer.

The UCSB hardware is based on superconducting quantum circuits, and must be cooled to very low temperatures to display quantum behavior. The architecture represents a new paradigm in quantum information processing, and shows that quantum large-scale-integration is within reach.

The quantum integrated circuit includes two quantum bits (qubits), a quantum communication bus, two bits of quantum memory, and a resetting register comprising a simple quantum computer. "Computational steps take a few billionths of a second, comparable to a classical computer, but the great power is that a quantum computer can perform a large number of calculations simultaneously," said Matteo Mariantoni, postdoctoral fellow in the Department of Physics. "In our new UCSB architecture we have explored the possibility of writing quantum information to memory, while simultaneously performing other quantum calculations.

"On the quantum von Neumann architecture, we were able to run the quantum Fourier transform and a three-qubit Toffoli gate -- key quantum logic circuits for the further development of quantum computing," said Mariantoni.

The UCSB experiment was pursued primarily by Mariantoni, under the direction of Andrew N. Cleland and John M. Martinis, both professors of physics. Mariantoni was supported in this work by an Elings Prize Fellowship in Experimental Science from UCSB's California NanoSystems Institute.

####

For more information, please click here

Contacts:
Gail Gallessich
(805)-893-7220


Matteo Mariantoni
(805) 893-5218
+39-338-7169569

skype name: matteo.mariantoni

Andrew Cleland
(805) 893-5401


John Martinis
(805) 893-3910
