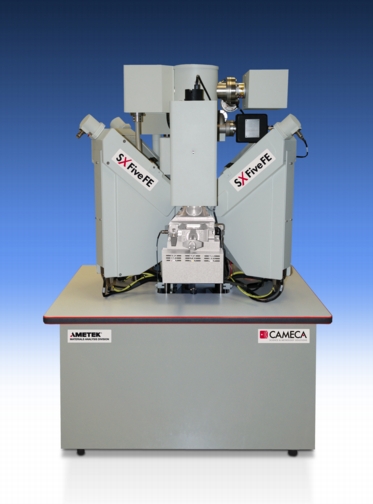

CAMECA--a world leader in scientific instrumentation and metrology solutions--has unveiled the SXFiveFE, a field emission electron probe microanalyzer (FE-EPMA) that is the latest addition to the CAMECA line of high-end microanalytical instruments.

Cameca launches new field emission electron probe microanalyzer (FE-EPMA):SXFiveFE for Quantitative Microanalysis and X-Ray Imaging at High-Spatial Resolution

Gennevilliers, France | Posted on May 23rd, 2011

"We are very proud to introduce the SXFiveFE microanalyzer, because we believe it represents a major advancement in microanalysis technology," comments Georges Antier, CAMECA Vice President and Business Unit Manager. "Developed for a wide range of micro and nanoanalytical applications, the SXFiveFE EPMA is CAMECA's fifth generation electron probe microanalyzer and the culmination of our more than 50 years experience in EPMA technology.

"This highly sophisticated instrument combines proven technology from our SIMS and other EPMA products with the latest developments in general purpose EPMA, including the addition of a field emission source," he adds.

"The SXFiveFE brings together all of the best features of CAMECA's earlier electron probe microanalyzers and incorporates a number of other features, including the unique combination of a field emission electron column and CAMECA's industry-leading high-sensitivity and resolution spectrometers, that we consider a major breakthrough in microanalysis," notes Mr. Antier.

"These features along with reliability improvements from our automated EPMA for the semiconductor industry, a novel field emission source and a redesigned electron column result in a highly versatile microanalyzer with unique capabilities for quantitative microanalysis and X-Ray imaging at the highest possible spatial resolution," he concludes.

The instrument is suitable for a diverse range of applications from geochronology, mineralogy and nuclear forensics to materials, thin films and semiconductor research.

Since introducing its first commercial EPMA to the market in 1958, CAMECA has brought continuous improvements to the technology. Hundreds of CAMECA EPMA instruments are installed at major corporations as well as in renowned universities and public research institutes across the world.
The newly delivered EPMA platform is available in two configurations: SXFive with W and LaB6 sources and SXFiveFE with FE source. CAMECA has optimized the performance of both instruments for challenging microanalytical applications at sub-micron spatial resolution, extending EPMA capabilities to smaller analyzed volumes. Equipped with high-precision spectrometers for greatest reproducibility, the instrument delivers highest quality minor and trace element analysis. In addition, it offers full automation for long-term unattended analysis.

####
