Scanning Electron Microscope Reveals “The Scream” in Oil Shale

Peabody, MA | Posted on May 27th, 2010

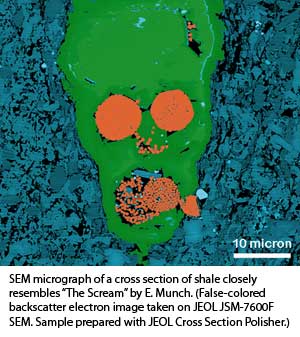

This week, during a SEM training session for an existing energy-related customer, JEOL specialists Dr. Natasha Erdman and Tony Laudate were examining the sample of oil shale in the microscope when they came upon this startling image that resembles a skeletal face and looked somewhat familiar to them. "It's our version of ‘The Scream' by E. Munch, said Mr. Laudate. Naturally they knew that what they were really looking at was an ion-beam polished cross section of quartz (the skull), pyrite (the eyes, nose, and mouth) and kerogen (the dark patches that are organic material). But the image was saved and will definitely be one of the most unusual that JEOL has ever taken.

Studying Oil Shale's Potential with the Scanning Electron Microscope

The clear details shown in the picture (micrograph) from the SEM is due to not only the optics of the microscope, but the way in which the sample was prepared and precisely cross sectioned from a larger chunk of shale through the use of a special ion-beam cross section polisher. This tool has become indispensable for oil shale analysis.

One of today's hottest areas of potential under-utilized energy resources is shale. Abundant in specific regions of the United States, oil shale is a fine-grained, sedimentary rock composed of flakes of clay minerals and tiny fragments of other minerals, especially quartz and calcite. Shale also has a complex network of soft veins of an organic substance, kerogen and accessory opaque minerals such as pyrite.

When heated, kerogen can release hydrocarbons, or fossil fuel. By studying the internal composition of the shale and the network of kerogen filled veins, scientists can determine the abundance and ease of extraction of oil.

Companies investigating this alternative source of energy have turned to JEOL for not only the electron microscope, but a unique sample preparation tool that creates pristine cross sections of oil shale. Without this tool, it is difficult to prepare cross sections of shale without distorting and smearing the soft veins of kerogen trapped in the composite.

The JEOL cross section polisher slices and polished the sliver of shale with an argon beam to yield undistorted, precise cross sections. Every detail can be clearly seen, allowing researchers to clearly see the network of veins of kerogen in the sample, and can take the imaging a step further to make 3D reconstructions of the pore network by using a Serial Slicing and Sampling technique with the Multibeam focused ion beam (FIB) instrument. To see more images of shale and other energy-related micrographs, visit www.jeolusa.com and click on the applications tab.

####

About JEOL
JEOL is a world leader in electron optical equipment and instrumentation for high-end scientific and industrial research and development. Core product groups include electron microscopes (SEMs and TEMs), instruments for the semiconductor industry (electron beam lithography and a series of defect review and inspection tools), and analytical instruments including mass spectrometers, NMRs and ESRs.

JEOL USA, Inc., is a wholly owned subsidiary of JEOL, Ltd., Japan, was incorporated in the United States in 1962. The company has 13 regional service centers that offer unlimited emergency service and support in the U.S.

For more information, please click here
