Home > Press > Piezo-Z Slide Scanner for 3D / Super Resolution Microscopy

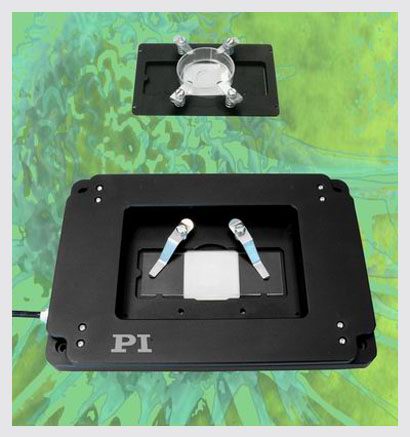

PI nano™ Z nanopositioning stages (shown with optional slide and Petri dish holder) feature a very low profile of 20 mm (0.8”), a large aperture and deliver highly accurate motion with sub-nanometer resolution.
PI nano™ Z nanopositioning stages (shown with optional slide and Petri dish holder) feature a very low profile of 20 mm (0.8”), a large aperture and deliver highly accurate motion with sub-nanometer resolution.

Abstract:
PI (Physik Instrumente) L.P. will introduce the new P-736 high-speed microscope slide Z-scanner piezo stage at this year's BIOS / Photonics West show.

Piezo-Z Slide Scanner for 3D / Super Resolution Microscopy

San Francisco, CA | Posted on January 22nd, 2010

Fast, Cost Effective Piezo Z-Stage for all Major Microscopes

The new PI nano™ piezo-Z stages are optimized for very fast step and settle and easy integration into high-resolution microscope applications. They feature a very low profile a large aperture, and travel ranges of up to 200 µm with sub-nanometer closed-loop resolution-ideal for leading-edge microscopy and imaging applications. The piezo stages are designed for inverted microscopes from the four major manufacturers: Leica, Nikon, Olympus and Zeiss. The low profile design of 20 mm (0.8") facilitates the integration. The large aperture accommodates microscopy accessories such as slide holders, Petri dish holders, etc.

Features & Advantages

 Extremely Fast Step & Settle, From 5 msec
 Cost Effective due to Piezoresistive Sensors
 Optional 25x25 mm long travel stage serves as a stable basis
 Low Profile for Easy Integration: 20 mm (0.8")
 100 and 200 µm Travel Ranges
 Longest Lifetime with Ceramic Encapsulated PICMA® Piezo Technology
 Compatible w/ Leading Image Acquisition Software Packages
 Closed-Loop Control for High Repeatability and Accuracy
 Digital Piezo Controller & Software Included

Higher Performance at Lower Cost: Packaged with Digital Controller

A compact digital piezo controller improves linearity and allows fast adaptation to changing load / settling / speed requirements and simple tuning from the controlling computer. It comes with three interfaces (USB, Analog and RS-232) for seamless compatibility with different control signals. The controller is also compatible with all major image acquisition packages and comes with a wide variety of software drivers and programming examples. The use of piezoresistive sensors allows for reduced cost despite the high performance.

Data sheet: www.physikinstrumente.com/en/news/fullnews.php?newsid=164

####

About Physik Instrumente
PI is a leading manufacturer of piezo systems, stages, linear motors & precision motion-control equipment for microscopy, bio-nanotechnology, photonics & semiconductor applications. The company has 4 decades of motion control experience with OEM and research customers. PI was ISO 9001 certified in 1994 and is present worldwide with eight subsidiaries and a total staff of over 500.

For more information, please click here

Contacts:
USA / Canada: www.pi-usa.us
East: David Rego
Tel: (508) 832-3456
Fax: (508) 832-0506

Copyright © Physik Instrumente
