Home > Press > IBM Scientists Reinvent Medical Diagnostic Testing

IBM scientists in Zurich have created a one-step point-of-care-diagnostic test, based on an innovative silicon chip that requires less sample volume, is significantly faster, portable, easy to use and can test for many diseases, including one of world's leading cause of death, cardiovascular disease.  Courtest IBM.
IBM scientists in Zurich have created a one-step point-of-care-diagnostic test, based on an innovative silicon chip that requires less sample volume, is significantly faster, portable, easy to use and can test for many diseases, including one of world's leading cause of death, cardiovascular disease. Courtest IBM.

Abstract:
Silicon Chip Tests for Disease in Rapid Time, Using Microscopic Sample

IBM Scientists Reinvent Medical Diagnostic Testing

Armonk, NY | Posted on November 18th, 2009

IBM scientists have created a one-step point-of-care-diagnostic test, based on an innovative silicon chip, that requires less sample volume, is significantly faster, portable, easy to use, and can test for many diseases, including one of world's leading causes of death, cardiovascular disease*. The results are so quick and accurate that a small sample of a patient's serum or blood, could be tested immediately following a heart attack, to enable the doctor to quickly take a course of action to help the patient survive.

View Video: www.youtube.com/watch?v=csXhUp0XJlI

View Images: www.flickr.com/photos/ibm_research_zurich/sets/72157622597913688/

As reported in Lab on a Chip, December 2009, Volume 9, Issue 23, IBM Research - Zurich scientists Luc Gervais and Emmanuel Delamarche, in collaboration with the University Hospital of Basel in Switzerland, have developed a new diagnostic test that uses capillary forces to analyze tiny samples of serum, or blood, for the presence of disease markers, which are typically proteins that can be detected in people's blood for diagnostic purposes. Capillary action force is the tendency of a liquid to rise in narrow tubes or to be drawn into small openings. An everyday example of a capillary action force can be viewed by dipping a paper towel in a cup of water - the microstructures in the paper fiber enable the towel to absorb the water.

"This point of care test has achieved the trifecta for medical staff in that it is portable, fast and requires a very small volume of sample," comments Emmanuel Delamarche, scientist, IBM Research - Zurich. "We are giving back precious minutes to doctors so they can make informed and accurate decisions right at the time they need them most to save lives."

While the diagnostic test has only been studied on heart disease, the scientists believe it could be able to diagnose any disease that markers have been developed for, such as: breast cancer, prostate cancer, lung cancer, HIV, Hepatitis C, Influenza virus (including H1N1 and others), Epstein-Barr virus, and bacterial infections, such as E. Coli. The test works by recognizing antibodies, so as long as the patient's body has begun to fight the disease by developing antibodies, the test should be able to identify the disease.

All in the chip

IBM scientists have encoded the forces of capillary action on a microfluidic chip made of a silicon compound, similar to those used in computer chips, thus leveraging IBM's vast experience in developing and manufacturing silicon semiconductor wafers. The chip, which measures 1 × 5 centimeters, contains sets of micrometer wide channels where the test sample flows through in approximately 15 seconds, several times faster then traditional tests. Uniquely, the filling speed can be adjusted to several minutes when the chip requires additional time to read a more complex disease marker.

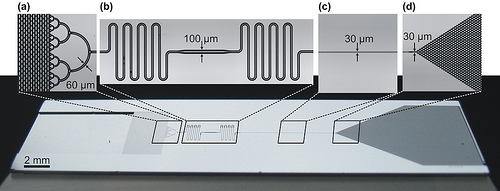

The microfluidic chip, which is based on nearly three years of research and development, consists of a microscopic path for liquids with five innovative stages:

* Stage 1: A one microliter sample, 50 times smaller than a tear drop, is pipetted onto the chip, where the capillary forces begin to take effect

* Stage 2: These forces push the sample through an intricate series of mesh structures, which prevent clogging and air bubbles from forming

* Stage 3: The sample then passes in a region where microscopically small amounts of the detection antibody have been deposited. These antibodies have a fluorescent tag and similar to the antibodies within our body, they recognize the disease marker and attach to it within the sample. Only seventy picoliters (a volume one million times smaller than a tear) of these antibodies are used, making their dissolution in the passing sample extremely fast and efficient.

* Stage 4: The most critical stage is called the "reaction chamber" and it measures 30 micrometers in width and 20 micrometers in depth, roughly the diameter of a strand of human hair. Similar to a common pregnancy test, in this stage the disease marker that was previously tagged is captured on the surface of the chamber. By shining a focused beam of red light, the tagged disease markers can be viewed using a portable sensor device that contains a chip similar to those used by digital cameras, albeit this one being much more sensitive. Based on the amount of light detected, medical professionals can visually confirm the strength of the disease marker in the sample to determine the next course of treatment.

* Stage 5: Less a stage and more a part of the entire process is the capillary pump. The capillary pump, which has a depth of 180 micrometers, contains an intricate set of microstructures, the job of which is to pump the sample through the device for as long as needed and at a regular flow rate, just like the human heart. This pump makes the test accurate, portable and simple to use. IBM scientists have developed a library of capillary pumps so that tests needing a variety of sample volumes or test times can still be done without having to re-engineer the entire chip.

Collaboration

True to IBM's strategy of open collaboration, scientists in Zurich tested their ideas with academic and healthcare partners. This research also would not have been possible without the generous support of KTI/CTI, an organization which fosters innovation in Switzerland.

"This microfluidic chip is the next step in the evolution of point of care devices. We look forward to working with the scientists at IBM Research - Zurich to develop this innovation even further," said Thierry Leclipteux, Chief Executive Officer and Chief Science Officer, Coris BioConcept.

IBM scientists designed the chip with flexibility in mind in both its form and uses. Due to its small size the chip can be embedded in several types of form factors, depending on the application, including a credit card, a pen or something similar to a pregnancy test. Besides diagnosing diseases, the test is also flexible enough to test for chemical and bio hazards.

Why IBM?

From a technological perspective, IBM has been a pioneer in nanoscience ever since the development of the Nobel Prizing winning Scanning Tunneling Microscope in 1981. Ever since, IBM researchers have been pushing the frontiers of scientific knowledge and manipulating at the nano scale and our work in one-step point-of-care diagnostics is a direct result of this effort. IBM is currently embarking on a grand vision called smarter planet helping industries, such as healthcare become more instrumented, interconnected and intelligent.

IBM's track record of improving healthcare through scientific achievements and collaboration with healthcare companies dates back to the 1950s. In the last decade, IBM has developed a national digital mammography archive with the University of Pennsylvania; developed a clinical trial participant system with the Mayo Clinic; collaborated with Scripps to understand how influenza viruses mutate and proactively develop treatments; collaborated with European universities to develop better methods to decide on antiretroviral therapies for HIV; launched the World Community Grid, which has done projects on cancer, aids, dengue fever; and much more.

*According to the World Health Organization Statistics 2009

The scientific paper entitled "Toward one-step point-of-care immunodiagnostics using capillary-driven microfluidics and PDMS substrates" by Luc Gervais and Emmanuel Delamarche, appears in Lab on a Chip, Volume 9, Issue 23, pp. 3330 to 3337 (December 2009)

####

About IBM
International Business Machines Corporation, abbreviated IBM, is a multinational computer technology and IT consulting corporation headquartered in Armonk, Town of North Castle, New York, United States. The company is one of the few information technology companies with a continuous history dating back to the 19th century. IBM manufactures and sells computer hardware and software (with a focus on the latter), and offers infrastructure services, hosting services, and consulting services in areas ranging from mainframe computers to nanotechnology. It has been nicknamed "Big Blue" for its official corporate color.

From Wikipedia, the free encyclopedia

About Coris

A biotechnology company developing rapid tests for diagnosis of enteric and respiratory pathogens. For more information visit www.corisbio.com/

For more information, please click here

Contacts:
Christopher P. Sciacca
IBM Research - Zurich
+41 44 724 84 43


Michael Loughran
IBM Research
914.945.1613
