Oxford Instruments has achieved 22.07 Tesla in a fully superconducting magnet operating at 4.2 Kelvin, the result of continuing efforts into studying the application of HTS high temperature superconducting and LTS low temperature superconducting technology in the manufacture of high magnetic fields.

Oxford Instruments achieves the first 22 Tesla at 4.2 Kelvin fully superconducting magnet using LTS and HTS materials

OXFORD, UK | Posted on August 21st, 2008

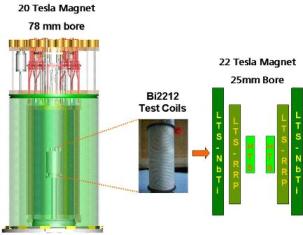

The 22 T magnet was built by integrating two HTS coils into a 20 T, 78 mm wide bore magnet. The latter was a first achievement in itself as it is the first fully superconducting magnet at 4.2 K using only LTS materials with such a wide bore. A major benefit of this magnet is that it can accommodate HTS insert coils in the drive to achieve a fully superconducting 25 to 30 T magnet system. Such high fields are needed by the research community in physical and life sciences to explore new areas in nanotechnology and bioscience. At present such magnetic fields can only be achieved using resistive magnets which have very high power consumption and require specialised infrastructure to allow their operation.

The two HTS coils are 10 cm high concentric solenoids made from 1.5 mm diameter Bi-2212 round wire. Each coil has six layers and was manufactured using the wind and react technique and then epoxy potted under vacuum. The inner diameters of the two coils are 25 and 55 mm respectively. The 20 Tesla wide-bore outer magnet was made from NbTi and high-performance RRPTM Nb3Sn wires. Both LTS and HTS wires were developed and supplied by Oxford Superconducting Technology (OST), part of the Oxford Instruments Group.

Until recently wide bore magnets above 18 T could only be achieved by super-cooling the magnet to 2.2 K. Operating at 4.2 K (the temperature of liquid helium at atmospheric pressure) significantly reduces the liquid helium consumption. This is crucial, as the cost of liquid helium has substantially risen over the last few years. It also allows the use of a recondensing cooling solution, using a mechanical cryocooler (such as a pulse tube refrigerator), reducing the helium consumption even further by re-liquefying liquid helium as it evaporates from the magnet vessel.

IMPDAHMA project

The successful operation of the 22 T magnet is a major step forward in the IMPDAHMA project to develop an integrated modelling package for the design of advanced HTS magnet applications. The magnet will provide a platform for the high field measurements of HTS coils that are necessary to develop the complex HTS modelling tool. IMPDAHMA is a three-year research and development collaboration project partially funded by the Technology Strategy Board in the UK and led by Oxford Instruments NanoScience, in collaboration with Vector Fields Ltd and The Institute of Cryogenics at Southampton University.

Dr Ziad Melhem, IMPDAHMA Project Manager at Oxford Instruments, said, "We are delighted by this major achievement which sets new records for superconducting research magnets using LTS and HTS materials. Enabling the full characterisation of HTS materials and coils at high field by the IMPDAHMA consortium will help accelerate the exploitation of HTS materials in innovative magnet applications. As HTS materials properties and manufacturing processes continue to be improved, there will be scope for even higher magnetic fields."

Derek Allen, Lead Technologist of the Technology Strategy Board said, "As part of its role in supporting UK innovation, the Technology Strategy Board is delighted to be associated with this project which has put the UK in a world leading position in superconducting technologies".

####
